Product parameters /
| Type | P15.625/15.625 Outdoor | | Type | P15.625/15.625 Outdoor |
Product model
| P15.625/15.625 | | Color processing | ≥14 bits |
| Pitch | From top to bottom 15.625mm,From left to right 15.625mm
| | Gray level | 65536 levels per color |
Pixel configuration
| 1R1G1B | | Color | 16.7M |
LED Type
| DIP346 | | Single point brightness correction | Support |
| Brightness | 6000cd/㎡ | | Single point chrominance correction | Support |
| White balance brightness | 6500cd/㎡ | | Distance from the center of the luminous point | ≤2.5% |
| Brightness control | Manual/Automatic adjustment | | Brightness uniformity | 97%/±0.003 |
| Color temperature | 6300-9000K | | Chrominance uniformity | （x，y）±0.003 |
| Viewing Angle | 160° | | Transparence | 50% |
| Pixel density | 4096 pixel/㎡ | | Frame-changing frequency | 50/60 Hz |
| Cabinet resolution(W×H) | 32 pixel×64 pixel | | Refresh rate | ≥1080 Hz |
| Cabinet size(W×H×D) | 500×1000×80 | | Power voltage(V) | AC100-240V |
| Weight/cabinet(kg) | 8.0 kg/panel | | Max.Power(W/㎡) | 480 W/㎡ |
| SQM | 0.5 ㎡ | | Average Power(W/㎡) | 135 W/㎡ |
| Cabinet meterial | Aluminum-alloy cabinet | | Life time | 100000 hours |
| Waterproof | IP65 | | Scanning | Static |
| Operate temperature/humidity | -20℃~+60℃/10%~95% | | Drive method | Constant current drive |
| Storage temperature/humidity | -40℃~+85℃/10%~95% | | Installation | Fix/Hang |
| Flatness | ≤1mm | | Maintenance mode | Front maintenance/Rear maintenance |

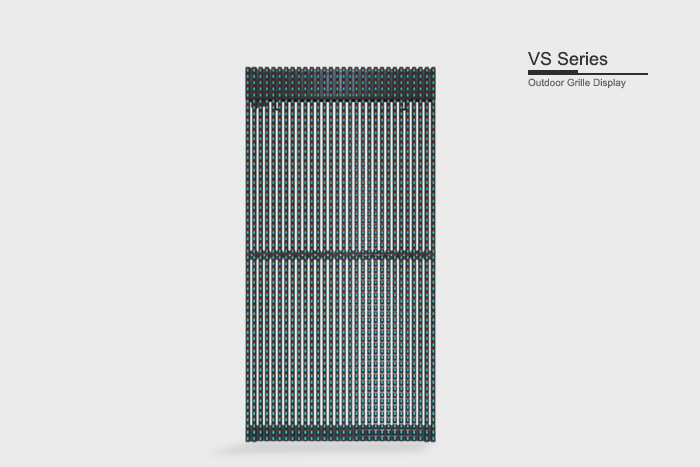

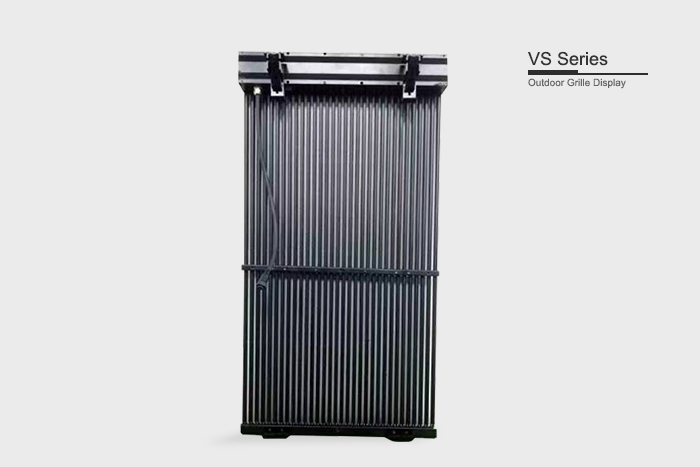

VS Series Grille Display /
LED Grille screen is a kind of LED screen with light bar. Because its shape is hollow, grid, so people also call it curtain screen, hollow screen and so on. It is mainly used for building curtain wall, building top and outdoor advertising.
VS series Grille screen breaks limitations of traditional led display on the wall of the building, making the project more flexible, more selective.
Advantage of Grille screen in outdoor advertising /
LED Grille screen is widely used in the outdoor, with good art design experience and advertising communication effect.Compared with the traditional outdoor advertising mode, Grille screen is light, thin and easy to install. It does not need to be posted and replaced like the traditional outdoor advertising,and it can play video and dynamic display.Compared to the other outdoor screen,Grille screen is no ordinary LED screen bulky, opaque defects.Mainly used in the glass curtain wall building, various shop glass windows, hotels ,tourist elevators and other occasions.
Product features /
The optimization is made to solve the problems such as heavy cabinet, complicated installation and remove process, and cabinet influence indoor lighting.As a new style product, VS series Grille screen has advantages over traditional screen in many aspects.
Six advantage /
VS series excellent product design enables it to be light, transparent, stable, fast, economical and cool.
“Breathing”cabinet /
As outdoor LED screen, it has to face many challenges from environment. To be well protected from rain, dust and moisture, the sealing performance must be good. But the electronic components generate a lot of heat in the work,so it is required to have good heat dissipation.These two parts in traditional cabinet has always been suffering.
Special breathing valve is introduced into VS series cabinet. When it’s cold, the breathing valve will close automatically, preventing rain moisture from entering cabinet.When it’s heated, the breathing valve will open automatically, so that muggy air can be removed, effective heat dissipation, to prevent electronic components from overheating.
Integrated controller /
Traditional controller adopts a large number of lines, which is not only complex to install and disassemble, but also easy to damage machine and affect the appearance.VS series grille adopts integrated controller to realize zero line through integrated circuit, which can effectively reduce cabinet space and is easy to install and maintain.
Intelligent correction /
Fixed installation supports flash calibration, free from impact of frequency and time attenuation, more convenient to use, one-second calibration, saving time and cost.
Product parameters /
On video playback, VS series grille screen can be matched with latest cloud technology. After joining cloud broadcast control, it can not only realize remote upload and control play content, but also remotely review uploaded content to prevent malicious operation.
Installation method /
Excellent design makes the VS series grille screen light weight, small volume and greatly reduced in construction difficulty, so it is more convenient and widely used for outdoor installation than the traditional LED screen.The installation is also almost free from the installation conditions of the building itself, and high transparent of screen can better integrate with building ,become a beautiful scenery.
